通过SPUG实现CICD

此处进行迭代的应用是ruoyi后端jar包，用来模拟真实的发包上线。

配置：虚拟机系统：CentOS7.7 四核八G

K8s版本：1.7.7

Kuboard版本：V2.0.0.5

通过Docker安装SPUG。（参考官方文档：Docker安装 | Spug）

yum install -y yum-utils

yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo

yum install docker-ce docker-compose-plugin

systemctl enable docker

systemctl start docker

编辑compose

vi docker-compose.yml

version: "3.3"

services:

db:

image:registry.cn-hangzhou.aliyuncs.com/openspug/mariadb:10.8.2 container_name: spug-db

restart: always

command: --port 3306 --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci

volumes:

- /data/spug/mysql:/var/lib/mysql

environment:

- MYSQL_DATABASE=spug

- MYSQL_USER=spug

- MYSQL_PASSWORD=spug.cc

- MYSQL_ROOT_PASSWORD=spug.cc

spug:

image:registry.cn-hangzhou.aliyuncs.com/openspug/mariadb:10.8.2 container_name: spug

privileged: true

restart: always

volumes:

- /data/spug/service:/data/spug

- /data/spug/repos:/data/repos

ports:

# 如果80端口被占用可替换为其他端口，例如: - "8000:80"

- "8000:80"

environment:

- MYSQL_DATABASE=spug

- MYSQL_USER=spug

- MYSQL_PASSWORD=spug.cc

- MYSQL_HOST=db

- MYSQL_PORT=3306

depends_on:

- db

docker compose up -d#启动容器

docker exec spug init_spug admin spug.cc#初始化

通过地址的8000端访问页面。

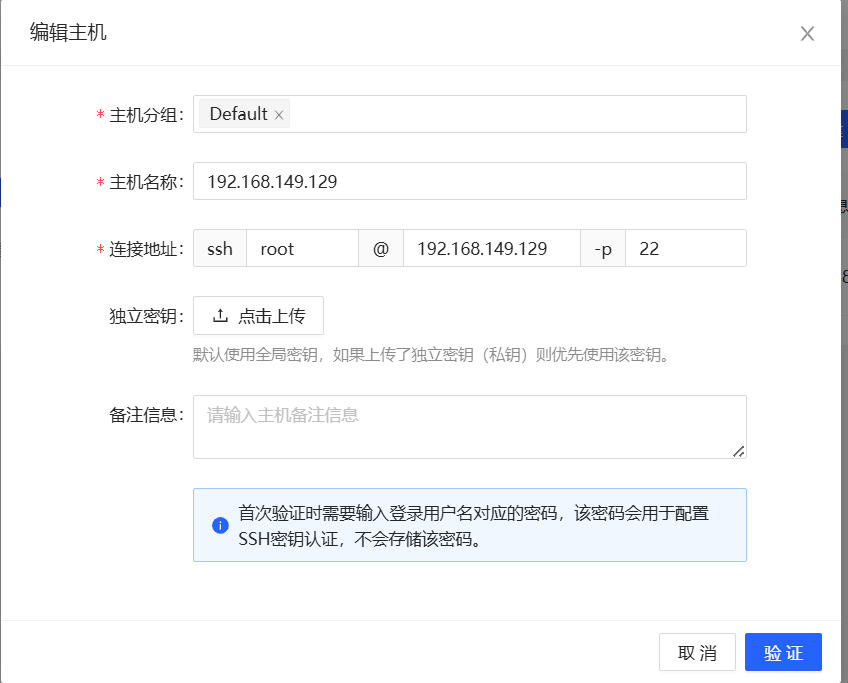

点击主机管理，添加一台虚拟机，配置如图.

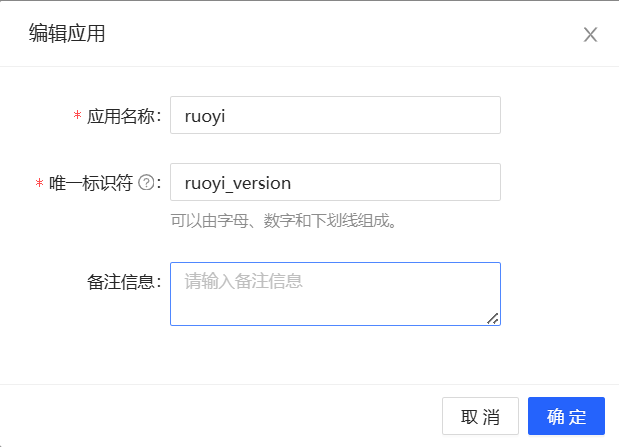

点击到“发布配置”，新增一个应用。

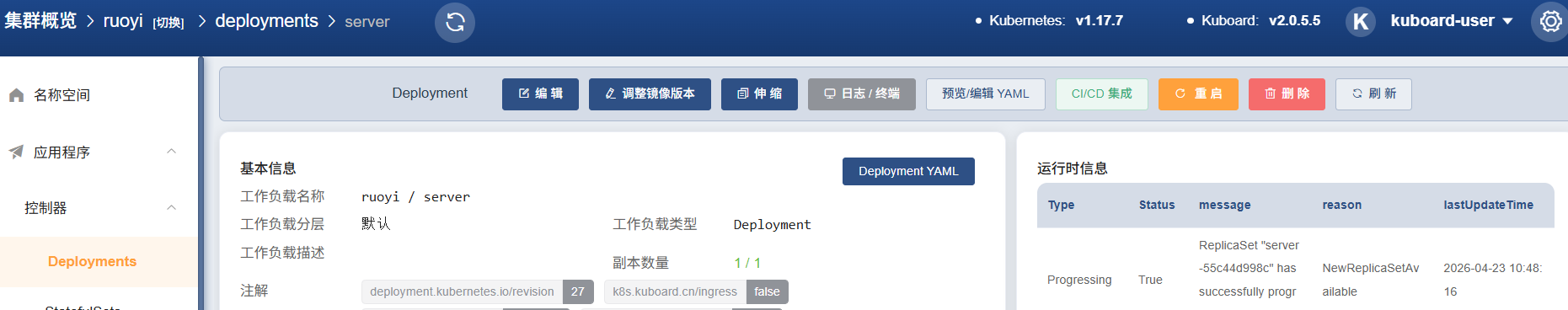

此时我们回到kuboard页面，在后端容器部署页面找到CI/CD.

将CICD集成中的curl复制下来，在虚拟机中创建一个shell脚本，以实现自动化部署。

vim ci.sh

#!/bin/bash

export ruoyi_t=$1 #执行脚本命令后的第一个指令键入这里。

curl -X PATCH \

-H "content-type: application/strategic-merge-patch+json" \

-H "Authorization:Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6IkFtcWctc0hpWmlaUHJhaTBWdjZoU2xJYldhaHNGX19nNWxWbVdJcVBUSFUifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJvYXJkLXVzZXItdG9rZW4tNTUybWwiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoia3Vib2FyZC11c2VyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiNGJmMmQzZTQtMDdkNS00ZjRkLTg4MTAtNDFkMmUxYmU5MTNlIiwic3ViIjoic3lzdGVtOnNlcnZY2VhY2NvdW50Omt1YmUtc3lzdGVtOmt1Ym9hcmQtdXNlciJ9.Xfq7YfYcbq-90gaGXLN-W0W1AOQJuIG3ySFR9q38XrDtbgxagx_SoGKunLz5skApMaVQ_tprBpH58KRVY5kckme6FHgMFti5TciTxL3-VrMOdDbv5m8TEtjJXKPXBrUHE2haxheY1bmlLZHQCmyLicQCsQgeS2a1GIS72MurzVpJJCTDGakNCowknsNtMObGUwZAyov-Wi9VcYKLS9sbNa6fUWr3gY9EwrQ1ZY-VMuwE1-_GKUfjoh53Udglo5tzTbILwMtX3qVbEMiBSwG0e85eTuxaT9DZVuheXmOEqfGKrXcQ5DH1afcKzsGyYjDh5VppjAysAXmt6Oi5OgxPbQ" \

-d '{"spec":{"template":{"spec":{"containers":[{"name":"server","image":"ruoyi-t:'$ruoyi_t'"}]}}}}' \

"http://192.168.149.129:32567/k8s-api/apis/apps/v1/namespaces/ruoyi/deployments/server"

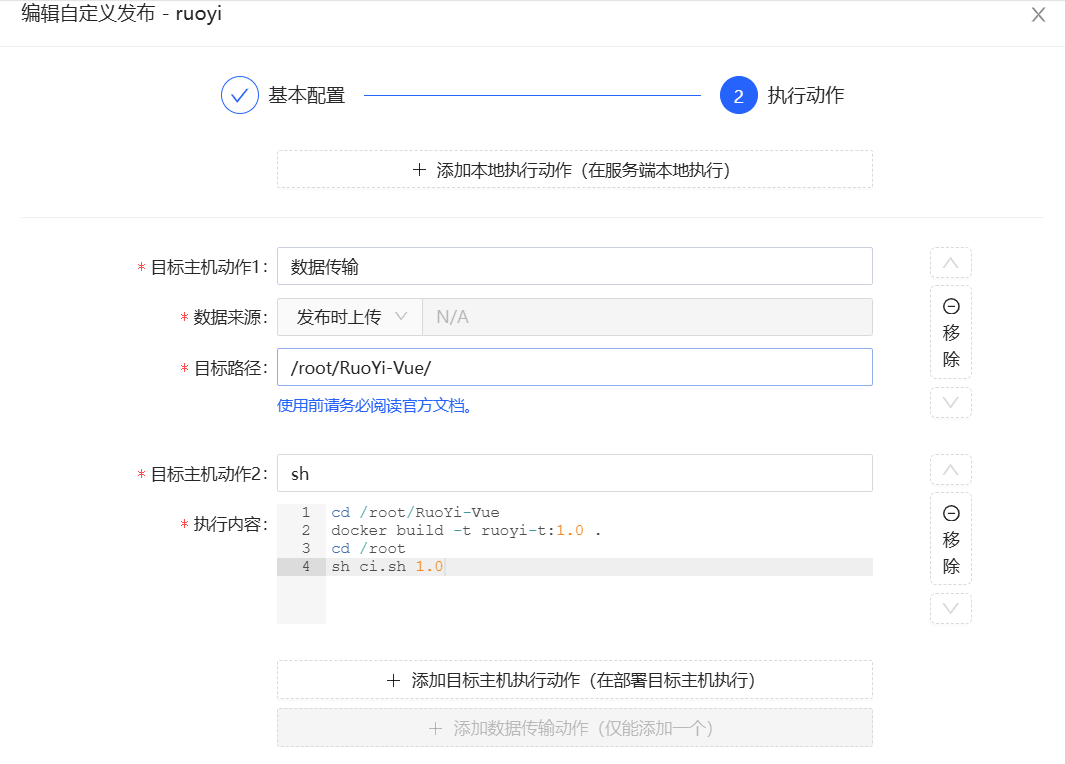

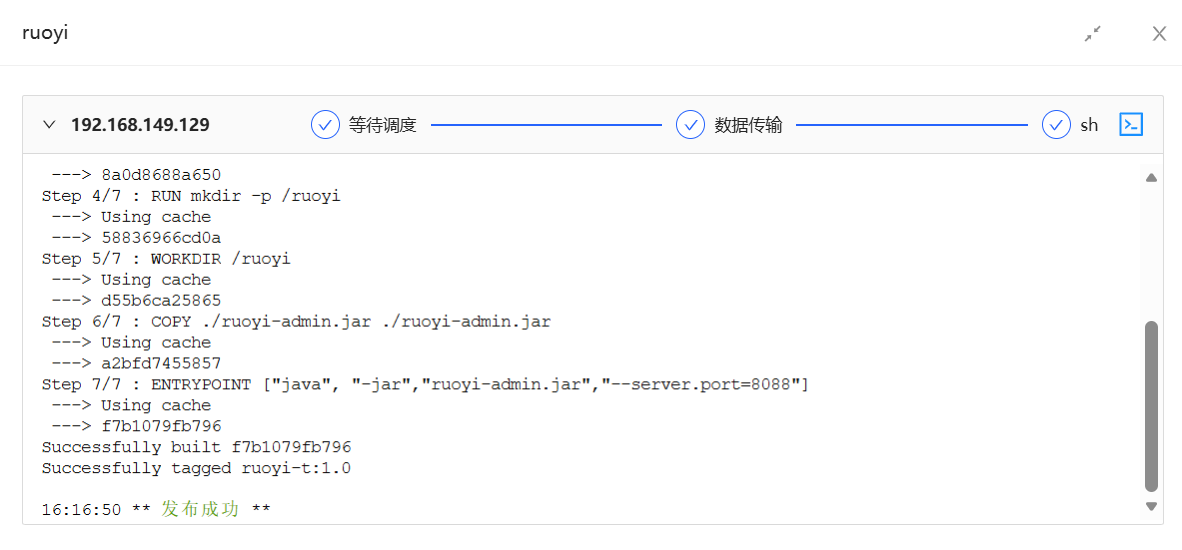

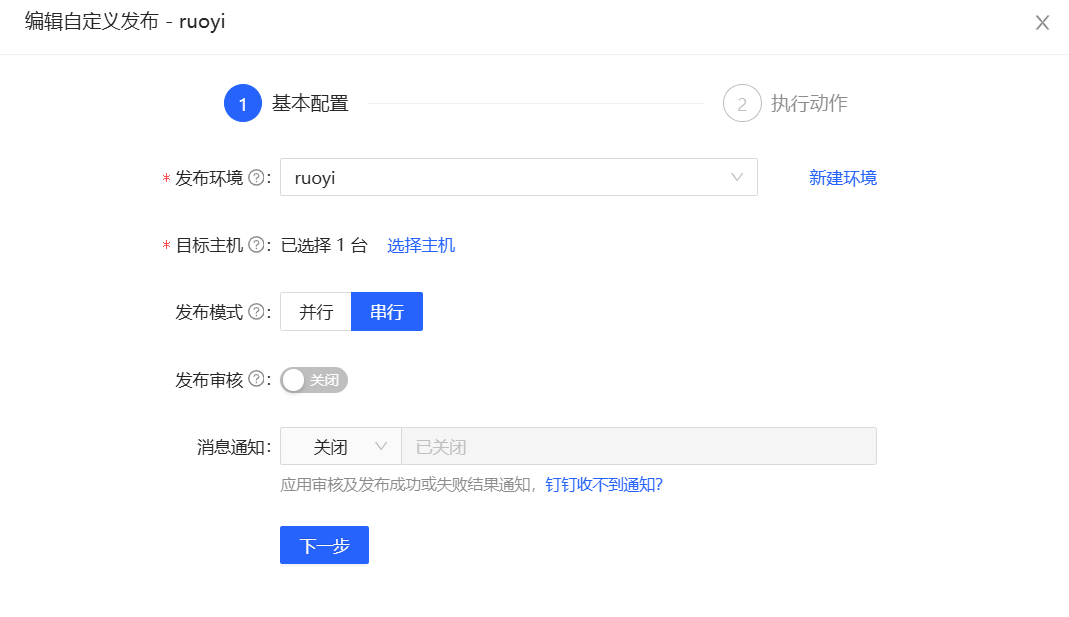

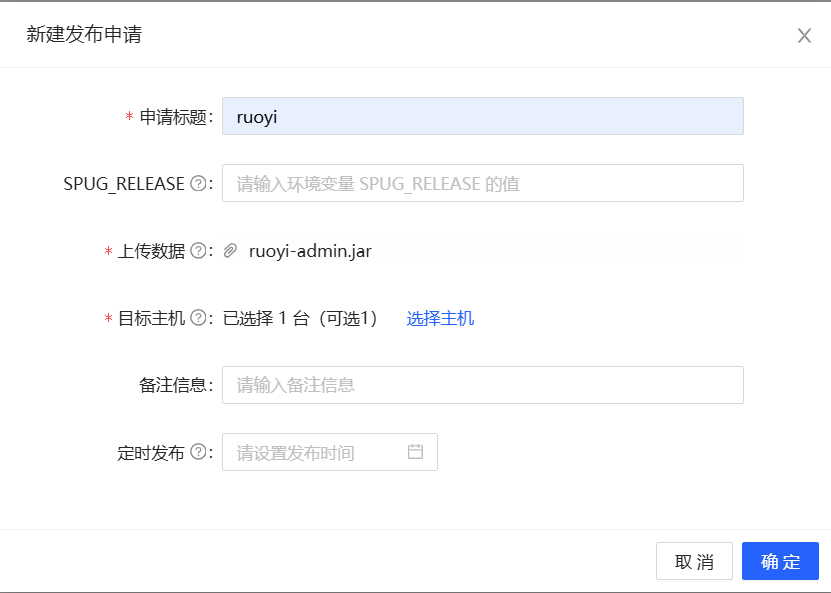

点击新建发布，选择自定义发布。
